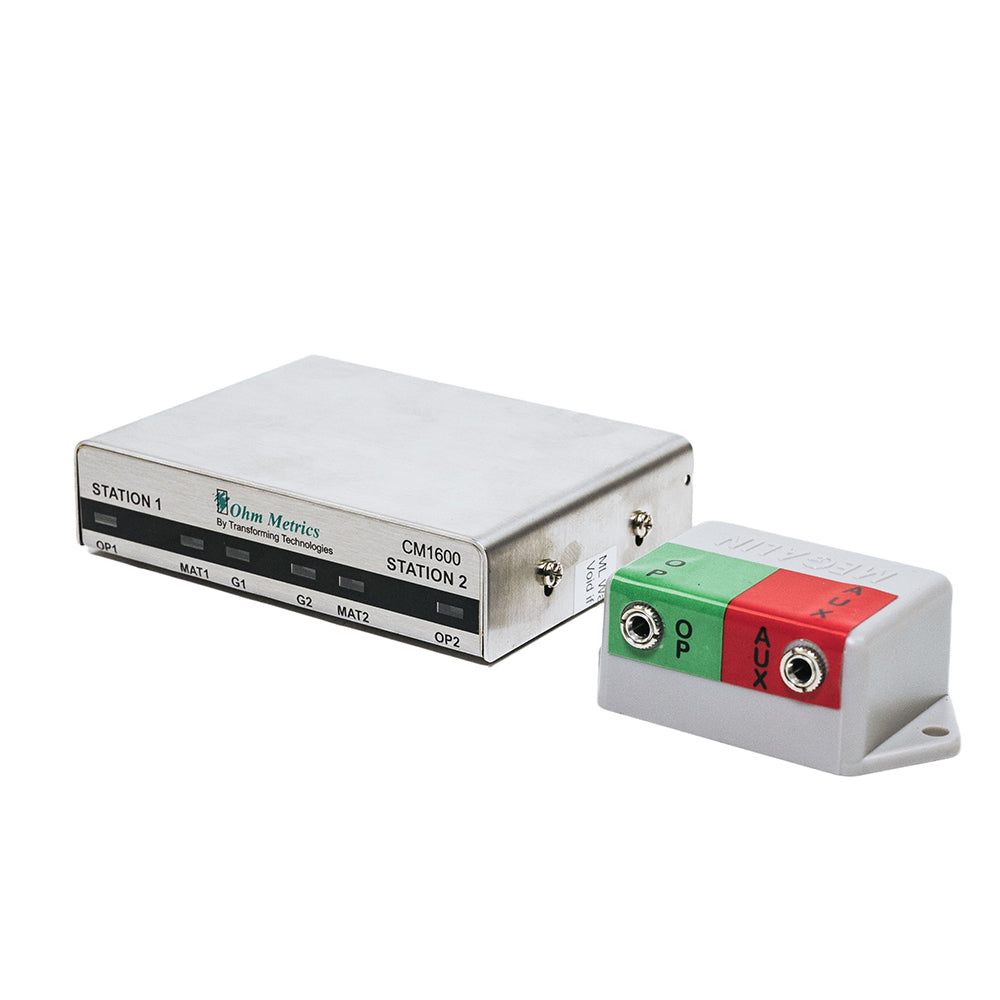

Transforming Technologies Dual Conductor Resistance Monitor, 2 Operators + 2 Mats - CM1600

$332.92
Add to wishlist
Add to compare
SKU: CM1600
California prop 65
Description

Description

  • Key performance benefit: Provides continuous monitoring of resistance and voltage for two operators and two work surfaces to maintain ESD protection.
  • Material & construction: Conductive ESD-safe case with dual conductor resistance monitoring technology.
  • Risk reduction/compliance benefit: Monitors wrist straps, ESD mat ground, and tool chassis ground simultaneously to ensure grounding integrity.
  • Protection level: Utilizes ultra-low voltage resistive loop technology for sensitive and reliable ground monitoring.
  • Comfort & usability: Supports two operators with independent monitoring of resistance and voltage. Audible and visual alarms provide immediate status indication.
  • Safety & compliance assurance: ESD safe design.

Recommended For

  • Dual operator ESD monitoring
  • Wrist strap resistance monitoring
  • Workstation ground monitoring
  • ESD mat monitoring
  • Tool chassis grounding verification
  • Use in critical ESD-controlled environments

Primary Industries

  • Electronics Manufacturing
  • ESD Control Environments
  • Industrial Manufacturing
  • Laboratory Operations

Standards and Certifications

  • Not specified
SHOW MORE

Properties

Voltage 0.2 V
Power Supply 7–15 VDC, 100 mA
Dimensions 4 × 1 × 3"
ESD Safe Yes
Type Dual-conductor resistance monitor
Capacity 2 operators, 2 wrist straps, 2 work surfaces, 2 AUX grounds
Reviews

FAQs

When is a continuous ESD monitor preferred over periodic wrist strap testing?

A continuous monitor is preferred in environments where constant grounding verification is required. Unlike periodic testing, it provides real-time monitoring of operators and work surfaces, helping detect failures immediately. This is especially important in critical ESD-controlled areas where even brief grounding interruptions could impact sensitive components.

How does monitoring multiple operators improve workflow efficiency?

Monitoring two operators simultaneously allows shared workstations to remain compliant without requiring separate devices. This reduces equipment redundancy and simplifies setup while ensuring both users are continuously grounded. It is particularly useful in collaborative work environments where multiple technicians operate at the same station.

What role do audible and visual alarms play in ESD protection?

Audible and visual alarms provide immediate feedback if a grounding issue occurs. This allows operators to quickly identify and correct problems before damage can occur. Real-time alerts help maintain consistent ESD protection and reduce the risk of unnoticed failures during sensitive handling tasks.

Can this monitor be used for both personnel and workstation grounding verification?

Yes, it is designed to monitor both operator wrist straps and workstation grounding points, such as mats and tool chassis. This dual functionality helps ensure that both personnel and work surfaces remain properly grounded, supporting a more complete ESD control system within the workspace.

What should be considered when installing and using this monitor?

Proper placement and secure connections are important to ensure accurate monitoring. Users should verify that wrist straps, grounding cords, and work surfaces are correctly connected. Regular checks of connections and power supply help maintain reliable operation and consistent performance in ESD-controlled environments.
