Aven Stereo Zoom Binocular Microscope SPZ_50 [6.75x -50x] - 26800B-373-5

Stereo Zoom Binocular Microscope SPZ_50 [6.75x -50x] on Articulating Arm with Integrated Ring Light - 26800B-373-5
Featuring Aven's versatile Standard Articulating Arm, this system is ideal for covering a large working area and ensures users have maximum flexibility in positioning the microscope.  The SPZ-50 microscope offers the best in class zoom ratio (7.46:1) with super sharp 3D images, wide field of view (1.35" to 0.14"), and long working distance (4.25"). The integrated LED Ring Light with Focus Mount with coarse and fine focus. The unit also includes a power supply box with variable dimming control.

System Components:

• SPZ-50 - Stereo Zoom Binocular Microscope
• 26800B-560 - Standard Articulating Arm Stand
• 26200B-209 - E-Arm Focus Mount with LED Ring Light

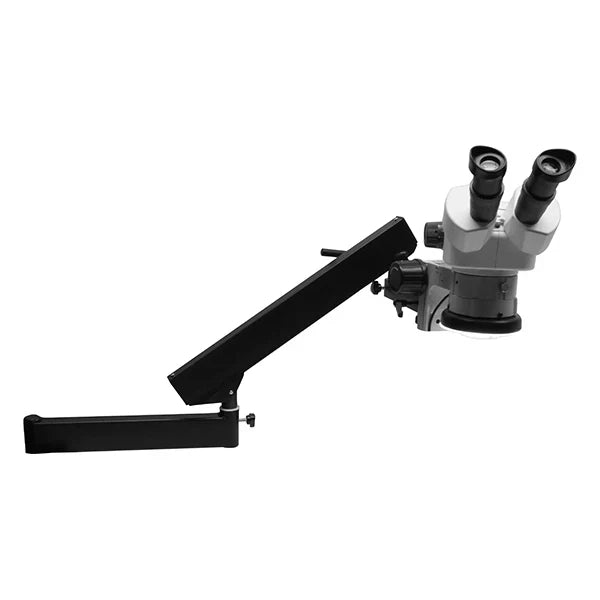

SPZ-50 Stereo Microscope on Standard Articulating Arm with E-Arm Focus Mount with Ring Light

Featuring Aven's versatile Standard Articulating Arm, this system is ideal for covering a large working area and ensures users have maximum flexibility in positioning the microscope. Includes a heavy-duty table clamp to secure the arm to the side of a work bench.The SPZ-50 microscope offers the best in class zoom ratio (7.46:1) with super sharp 3D images, wide field of view (1.35" to 0.14"), and long working distance (4.25"). The integrated LED Ring Light with Focus Mount with coarse and fine focus. The unit also includes a power supply box with variable dimming control.

SPZ-50 Stereo Zoom Microscope

Wide Magnification Range

Avens SPZ-50 Stereo Zoom Microscope has a magnification range of 6.7x€”50x, which can be enhanced to up to 200x with optional auxiliary lenses and eyepieces.

• Large zoom ratio 7.46:1- best zoom ratio in class
• Field of View 34.3mm to 3.6mm (1.35" to 0.14")
• Working distance 108mm (4.25") the best in class
• 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
• Diopter adjustment on both eyepiece tubes



Heavy Duty Articulating Arm

This versatile articulating arm stand is ideal for covering a large working area, and ensuring users have maximum flexibility in positioning the scope. Can be moved out of the way when microscope is not in use to help create more bench space for your work. All metal construction.

Focus Mount with Built-In LEDs

Course/Fine Focus | Integrated LED Ring Light

The ring light consists of 60 ecofriendly daylight LEDs producing a light intensity of 35,000 lux and a color temperature of 5600K. The LEDs are rated for over 20,000 hours of service. Ring light is mounted securely onto Avens standard focus mount available in both coarse and fine focus. The unit includes a power supply box with variable dimming control.

Features

SPZ-50 Stereo Zoom Microscope

• Large zoom ratio 7.46:1- best zoom ratio in class
• Field of View 34.3mm to 3.6mm (1.35"; to 0.14";)
• Working distance 108mm (4.25";) -the best in class
• 17mm (0.67";) high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
• Diopter adjustment on both eyepiece tubes

Standard Articulating Arm Stand

• Allows great flexibility in positioning microscopes
• Can be moved out of way when not in use
• All metal construction

Focus Mount with Integrated Ring Light

• Integrated LED ring light with focus mount with coarse and fine focus
• Eliminates chance of LED ring becoming loose from the microscope
• 60 dimmable, eco-friendly SMD LEDs provide ultra-bright shadow-free illumination
