Aven Stereo Zoom Binocular Microscope SPZ-50 [6.75x-50x] - 26800B-373-8

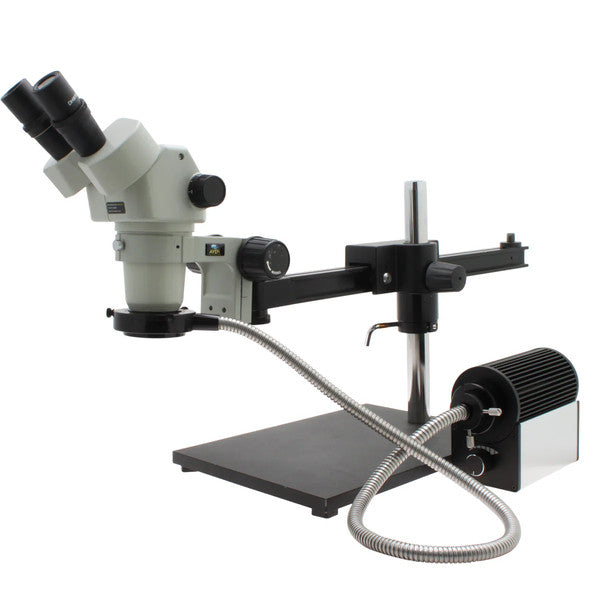

Stereo Zoom Binocular Microscope SPZ-50 [6.75x-50x] on Ultra Glide Boom Stand and LED FOI - 26800B-373-8
The ideal inspection system for viewing parts with a large surface area. Featuring Avens Ultra-Glide Boom Stand, operators can smoothly glide the boom along its 23 inch reach. This system also includes Avens SPZ-50 Stereo Zoom Microscope with 10x eyepieces (6.7x€“50x magnification) and Fiber Optic Illuminator (FOI).  The FOI system is fanless, designed to reduce distracting noise.

SPZ-50 Stereo Zoom Binocular Microscope with Ultra Glide Stand and FOI LED Illumination

Magnification range: 6.7x-50x

Aven's Ultra-Glide Boom Stand System is ideal for inspecting parts over a large surface area.  The ultra-glide boom stand provides smooth motion along it's 23" arm, allowing for easy scanning.   The stand features a 13.5 inch post with a safety collar, and a heavy 10.5 x 15 inch base.This system features Aven's SPZ-50 Stereo Zoom Microscope.  This microscope offers the best in class zoom ratio (7.46:1) with super sharp 3D images, wide field of view (1.35" to 0.14") and long working distance (4.25").  These components make this system an ideal choice for high throughput inspection stations and engineering and science labs.

SPZ-50 Stereo Zoom Microscope

Wide Magnification Range

Avens SPZ-50 Stereo Zoom Microscope has a magnification range of 6.7x€”50x, which can be enhanced to up to 200x with optional auxiliary lenses and eyepieces.

• Large zoom ratio 7.46:1- best zoom ratio in class
• Field of View 34.3mm to 3.6mm (1.35" to 0.14")
• Working distance 108mm (4.25") the best in class
• 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
• Diopter adjustment on both eyepiece tubes



Ultra-Glide Boom Stand

Smooth Gliding Motion

Smooth motion of the gliding arm allows the microscope to easily scan across the subject. Features two locking knobs to adjust the horizontal and vertical position of the gliding arm. A heavy metal base provides excellent stability and a safety collar on the support post provides added protection for your inspection system.

• 23 inch gliding arm provides smooth horizontal movement
• Allows positioning of microscopes over large area
• Heavy duty all metal construction
• 13.5 inch post with safety collar
• Heavy 15 x 10.5 inch  base assures stability and space



FOI Illuminator

Avens 26200A-310 Fiber Optic Illuminator is compatible with most fiber optic cables and guides. A versatile illumination source, this device easily adapts to your specific application.  Users can choose from single and dual pipe guides, as well as annular ring lights and much more.  The  26200A-310  contains a 24 watt LED lamp, outputs a color temperature of 5600K, and has an expected lamp life of 10,000 hours.

Features

Ultra-Glide Boom Stand w/Heavy Metal Base

• 13.5" post
• 23" gliding boom
• All metal construction
• Ideal for use when large objects are to be viewed

SPZ-50 Stereo Zoom Binocular Microscope

• Large zoom ratio 7.46:1- best zoom ratio in class
• Field of View 34.3mm to 3.6mm (1.35" to 0.14")
• Working distance 108mm (4.25") -the best in class
• 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
• Diopter adjustment on both eyepiece tubes

FOI LED Illuminator

• The light source is an ultra-bright and energy efficient LED, providing long-life illumination at low heat temperatures
• The unit operates quietly, with no distracting fan noise
• Adjustable brightness intensity up to 1600Lx
• Anti-static metal construction
