Aven Stereo Zoom Binocular Micrscope SPZ-50 [6.75x-50x] - SPZ-50-534-223
$3,027.82
Back to products Back to products
Next product
Aven DSZ-44 - Binocular Stereo Zoom Microscope [10x to 44x] - DSZ-44 $1,385.07

Aven Stereo Zoom Binocular Microscope SPZ-50 [6.7x 50x] - SPZ50-209-553

$2,275.28
Get Financing
Add to wishlist
Add to compare
SKU: SPZ50-209-553
California prop 65
Description

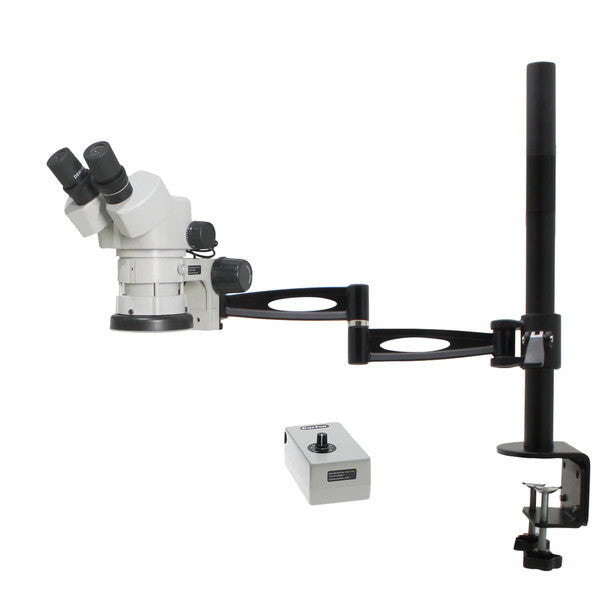

Stereo Zoom Binocular Microscope SPZ-50 [6.7x 50x] on Compact Articulating Arm Stand with LED Ring Light - SPZ50-209-553
This system features Avens SPZ-50 Stereo Zoom Microscope with 10x eyepieces (6.7x 50x magnification), ideal for examining objects of any size. Featuring Avens compact Articulating Arm Post Stand, operators can easily position the microscope where needed.

Microscope Magnification Range

6.7x - 50x


High Precision Optics

SPZ-50 true trinocular stereo zoom microscopes offers the best in class zoom ratio with super sharp 3D images, wide field of view and long working distance which makes it an ideal choice for inspection. High precision optics ensures excellent contrast and high definition 3D images from edge to edge.

  • View images through the eyepiece or a monitor simultaneously.
  • Click stop zoom adjustment for accurate measuring
  • Large zoom ratio 7.46:1- best zoom ratio in class
  • Field of View 34.3mm to 3.6mm (1.35" to 0.14")
  • Working distance 108mm (4.25") the best in class
  • 17mm (0.67") high eye point wide field 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
  • Diopter adjustment on both eyepiece tubes


Compact and Convenient

The articulating arm stand features a 415mm (16.33in) articulating arm with two articulating joints, attached to a 450mm (17.7in) post. Includes a built-in table clamp with dual locks for added stability. The arm can be raised/lowered and rotated to the ideal position.



Articulating Arm

The 16.3 inch articulating arm can be secured to any point along the 17.7 inch post. The two articulating joins can be rotated to the ideal position, and can be used to move the microscope out of the way when not in use.

  • Large zoom ratio 7.46:1- best zoom ratio in class
  • Field of View 34.3mm to 3.6mm (1.35" to 0.14")
  • Working distance 108mm (4.25") -the best in class17mm (0.67") high eye point wide field
  • 10x eyepieces (field number 23) for comfortable viewing even for operators with eyeglasses
  • Diopter adjustment on both eyepiece tubes
  • Compact and convenient
  • Microscope can be easily positioned
  • 16.3€� articulating arm with two joints
