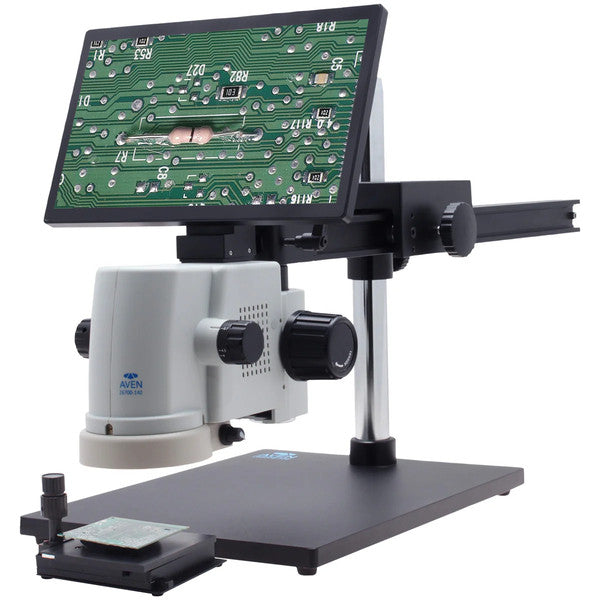

Aven MicroVue Digital Microscope with Ultra-Glide Stand - 26700-140-556XYR

Aven's MicroVue Digital Microscope is an all-in-one inspection system.The MicroVue offers a magnification range of 17x - 110x on it's built- in 11.6" monitor and 8.6x to 221x with optional lenses

Features:

• Built-in 11.6" monitor for ergonomic viewing
• 17x - 110x magnification (on the built-in monitor) without optional lenses
• 8.6x To 221x Magnification Range With Optional Lenses
• HDMI output for external monitor viewing
• Built-in measurement capabilities
• Save image/video files to USB storage device
• USB included
• Ultra-Glide Boom Stand included
• Compact XY gliding table with rotatable stage included

All-In-One Digital Microscope

Discover the power of precision with Aven's MicroVue Digital Microscope, your all-in-one solution for detailed inspection and analysis. This advanced system is designed not only to enhance your viewing experience but to integrate seamlessly into any workspace with its ergonomic and compact design.

Crystal-Clear Monitor

Up to 110x Magnification

Featuring a generous 11.6" built-in monitor, the MicroVue offers exceptional ergonomic viewing, allowing for comfortable extended use without sacrificing on detail. Experience crisp, clear magnification ranging from 17x to 110x directly on the built-in monitor. For those seeking even greater detail, optional lenses extend the magnification capabilities from 8.6x to a remarkable 221x, opening a world of microscopic details.

Included X/Y/R Stage

Scan X and Y axis, and Rotate 360 degrees

This gliding stage has been optimized for use with the MicroVue. The compact design makes it easy for operators to add the stage to an existing microscope setup, and easily set aside when not in use.

The MicroVue doesn't stop at superior magnification. It comes equipped with an HDMI output, enabling the option of external monitor viewing for an expanded visual workspace or for sharing your findings with a team.

Ultra-Glide Boom Stand

Easily scan

Smooth movement of the gliding boom allows you to easily move your MicroVue  over and across the object being viewed. The heavy metal base provides excellent stability.  Safety collar on the support post provides added security for your inspection system.


• Vertical post height: 13.5"

• Horizontal arm length: 23"


• 0.6x to 4x zoom magnification
• Detented Zoom Adjustment for High Accuracy Measurement
• Compact XY Gliding Table with 360 Rotating Stage included
• Heavy-duty post stand with adjustable LEDs
• All-in-one, compact system
• 1080p Full HD Imaging at 60 FPS
• HDMI Output for additional monitor viewing
• Built-in measurement software - No PC required
• Enhances productivity - eliminates eye strain and body fatigue
• 11.6" built-in HD monitor
• Save high resolution image/video files directly to USB Storage card
• 1080p Full HD Output
• Monitor can be tilted to the optimal viewing angle
