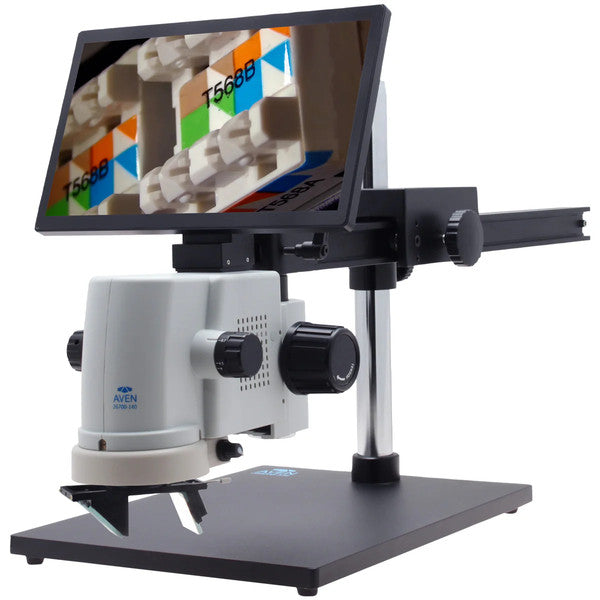

Aven MicroVue Digital Microscope with Ultra Glide Stand - 26700-140-5563D

Aven's MicroVue Digital Microscope is an all-in-one inspection system.The MicroVue offers a magnification range of 17x - 110x on it's built- in 11.6" monitor.

Features:

• Built-in 11.6" monitor for ergonomic viewing
• 17x - 110x magnification (on the built-in monitor)¬†
• HDMI output for external monitor viewing
• Built-in measurement capabilities
• Save image/video files to USB storage device
• USB included
• 360 Viewer Attachment rotates to give a 35 degree angle view
• Ultra-Glide Boom Stand included

All-In-One Digital Microscope

Discover the power of precision with Aven's MicroVue Digital Microscope, your all-in-one solution for detailed inspection and analysis. This advanced system is designed not only to enhance your viewing experience but to integrate seamlessly into any workspace with its ergonomic and compact design.

Crystal-Clear Monitor

Up to 110x Magnification

Featuring a generous 11.6" built-in monitor, the MicroVue offers exceptional ergonomic viewing, allowing for comfortable extended use without sacrificing on detail. Experience crisp, clear magnification ranging from 17x to 110x directly on the built-in monitor. For those seeking even greater detail, optional lenses extend the magnification capabilities from 8.6x to a remarkable 221x, opening a world of microscopic details.

Included X/Y/R Stage

Scan X and Y axis, and Rotate 360 degrees

This gliding stage has been optimized for use with the MicroVue. The compact design makes it easy for operators to add the stage to an existing microscope setup, and easily set aside when not in use.

HDMI Output

Real-Time viewing from an external monitor

The MicroVue doesn't stop at superior magnification. It comes equipped with an HDMI output, enabling the option of external monitor viewing for an expanded visual workspace or for sharing your findings with a team.

Ultra-Glide Boom Stand

Easily scan

Smooth movement of the gliding boom allows you to easily move your MicroVue over and across the object being viewed. The heavy metal base provides excellent stability. Safety collar on the support post provides added security for your inspection system.

• Vertical post height: 13.5"
• Horizontal arm length: 23"

Built-In Measurement Capabilities

No Computer Required

Built-in measurement capabilities ensure precise analysis and documentation, enhancing the utility and efficiency of your research or quality control processes.

Easy Image Capture

Save Directly to USB Storage

Saving and sharing your discoveries is as straightforward as it gets. With the ability to save image and video files directly to a USB storage device, the MicroVue simplifies the process of capturing and transferring data. Plus, a USB is included to get you started right away.

Compact Design

Saving and sharing Designed with your space in mind, the MicroVue boasts a compact footprint, ensuring that even the most limited benchtop spaces can accommodate this powerful tool without compromise.

Optional Lenses

Enhance your magnification range and working distance

• 0.5X Lens: The 0.5x lens is designed to increase working distance, as well as increase the field of view on the screen for additional viewing area.



  Included 360 Viewer





  Angled views and 360 rotation

  The 360 Viewer Attachment's unique design gives operators a new perspective on objects being viewed. The 35 degree angled mirror is ideal for looking around multi-layered parts such as circuit boards, medical tools, industrial parts, and more. The attachment can be rotated 360 degrees to display the part from various angles without needing to physically move the part.

  • When in the On Position the 3D Viewer displays the angled on-screen image with a reduced 0.5x magnification applied.

  • When in the Off Position the screen displays an overhead image with no added angle and no magnification reduction.
  The MicroVue 0.5x Objective Lens is designed to enhance the versatility of the MicroVue Digital Microscope. When in use, the magnification range becomes 8.6x 55.2x on the MicroVue 11.6€� monitor. By reducing the magnification range by 50%, the field of view increases, providing more viewing area to inspect a larger surface area.

  This lens easily screws to the bottom of the MicroVue Digital Microscope for crystal-clear high-resolution inspection.



  Monitor Size	MicroVue Standard Lens		MicroVue 0.5x Lens
  	Working Distance:100mm		Working Distance: 165mm
  	Mag.	F.O.V.(mm)	Mag.	F.O.V.(mm)
  11.6''	17.2x-110.5x	18.5*10.5-2.8*1.5	8.6x-55.2x	37.5*21-5.5*3.0
  21.5''	31.9x-204.8x	18.5*10.5-2.8*1.5	15.9x-102.4x	37.5*21-5.5*3.0



  • 0.6x to 4x zoom magnification
  • Detented Zoom Adjustment for High Accuracy Measurement
  • 360 Viewer attachment included
  • Heavy-duty post stand with adjustable LEDs
  • All-in-one, compact system
  • 1080p Full HD Imaging at 60 FPS
  • HDMI Output for additional monitor viewing
  • Built-in measurement software - No PC required
  • Enhances productivity - eliminates eye strain and body fatigue
  • 11.6" built-in HD monitor
  • Save high resolution image/video files directly to USB Storage card
  • 1080p Full HD Output
  • Monitor can be tilted to the optimal viewing angle
