Aven MicroVue Digital Microscope with Built-In HD Monitor [17 - 110x] - 26700-140

MicroVue Digital Microscope with Built-In HD Monitor [17 - 110x] - 26700-140

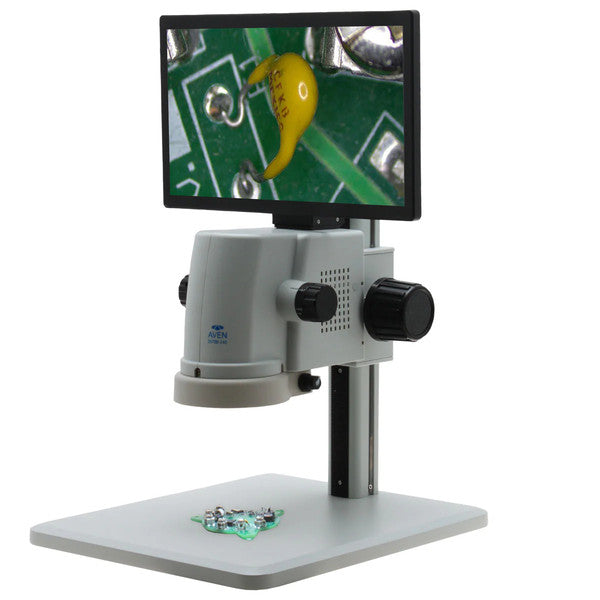

Aven's MicroVue Digital Microscope is an all-in-one inspection system.The MicroVue offers a magnification range of 17x - 110x on it's built- in 11.6" monitor and 8.6x to 221x with optional lenses

Features:

• Built-in 11.6" monitor for ergonomic viewing
• 17x - 110x magnification (on the built-in monitor) without optional lenses

• 8.6x To 221x Magnification Range With Optional Lenses
• HDMI output for external monitor viewing
• Built-in measurement capabilities
• Save image/video files to USB storage device
• USB included
• Compact design saves bench top space


Elevate your inspection capabilities with the MicroVue Digital Microscope from Aven, where cutting-edge technology meets ergonomic design to transform your viewing experience.

All-In-One Digital Microscope

Discover the power of precision with Aven's MicroVue Digital Microscope, your all-in-one solution for detailed inspection and analysis. This advanced system is designed not only to enhance your viewing experience but to integrate seamlessly into any workspace with its ergonomic and compact design.

Crystal-Clear Monitor

Up to 110x Magnification

Featuring a generous 11.6" built-in monitor, the MicroVue offers exceptional ergonomic viewing, allowing for comfortable extended use without sacrificing on detail. Experience crisp, clear magnification ranging from 17x to 110x directly on the built-in monitor. For those seeking even greater detail, optional lenses extend the magnification capabilities from 8.6x to a remarkable 221x, opening a world of microscopic details.

HDMI Output

Real-Time viewing from an external monitor

The MicroVue doesn't stop at superior magnification. It comes equipped with an HDMI output, enabling the option of external monitor viewing for an expanded visual workspace or for sharing your findings with a team.

Built-In Measurement Capabilities

No Computer Required

Built-in measurement capabilities ensure precise analysis and documentation, enhancing the utility and efficiency of your research or quality control processes.

Easy Image Capture

Save Directly to USB Storage

Saving and sharing your discoveries is as straightforward as it gets. With the ability to save image and video files directly to a USB storage device, the MicroVue simplifies the process of capturing and transferring data. Plus, a USB is included to get you started right away.

Compact Design

Saving and sharing Designed with your space in mind, the MicroVue boasts a compact footprint, ensuring that even the most limited benchtop spaces can accommodate this powerful tool without compromise.

Optional Lenses

• 0.5X Lens: The 0.5x lens is designed to increase working distance, as well as increase the field of view on the screen for additional viewing area.
• 2.0X Lens: increases the magnification range to 34.4x-221x. These lenses easily attach to the standard MicroVue lens.

Optional XYR Stage

Scan X and Y axis, and Rotate 360 degrees

This gliding stage has been optimized for use with inspection systems where work space is limited. The compact design makes it easy for operators to add the stage to an existing microscope setup, and easily set aside when not in use.

Optional 360 Viewer

The 360 Viewer Attachment's unique design gives operators a new perspective on objects being viewed. The 35 degree angled mirror is ideal for looking around multi-layered parts such as circuit boards, medical tools, industrial parts, and more. The attachment can be rotated 360 degrees to display the part from various angles.

• When in the On Position the 3D Viewer displays the angled on-screen image with a reduced 0.5x magnification applied.
• When in the Off Position the screen displays an overhead image with no added angle and no magnification reduction.

Digital Microscope with Built in Monitor

8.6x to 221x magnification range with optional lenses

The MicroVue has all the features required for digital inspection. View live images, capture high resolution images and video files, make text annotations, make accurate measurements with the built in software, and more all done without the need for an external PC

Inspecting objects on the built in monitor offers an ergonomic inspection process, significantly reducing the eye strain and body fatigue often associated with frequent optical microscope use.

The included 360 Viewer Attachment provides a 35 degree angled view, and can be rotated 360 degrees to view areas that are otherwise difficult to see.

360 Viewer Attachment provides unique viewing angles

The 360 Viewer Attachment's unique design gives operators a new perspective on objects being viewed.  The 35 degree angled mirror is ideal for looking around multi-layered parts such as circuit boards, medical tools, industrial parts, and more.  The attachment can be rotated 360 degrees to display the part from various angles.

• When in the On Position the 3D Viewer displays the angled on-screen image with a reduced 0.5x magnification applied.¬†
• When in the Off Position the screen displays an overhead image with no added angle and no magnification reduction.

Large Magnification Range

MicroVue offers a magnification range of 17x - 110x on its built- in 11.6" monitor without use of the optional lenses.

Using the 0.5x lens the magnification range can be changed to 8.6x to 55x with the 0.5x lens and 34x to 220x with the 2x lens

NOTE:  Accurate magnification can only be measured with 3D Viewer Attachment in the OFF Position.

• Built-in 11.6" monitor for ergonomic viewing
• 8x-221x magnification on the built-in monitor (with optional lenses)
• HDMI output for external monitor viewing
• Built-in measurement capabilities
• Save image/video files to USB storage device
• USB included
• Compact design saves bench top space
