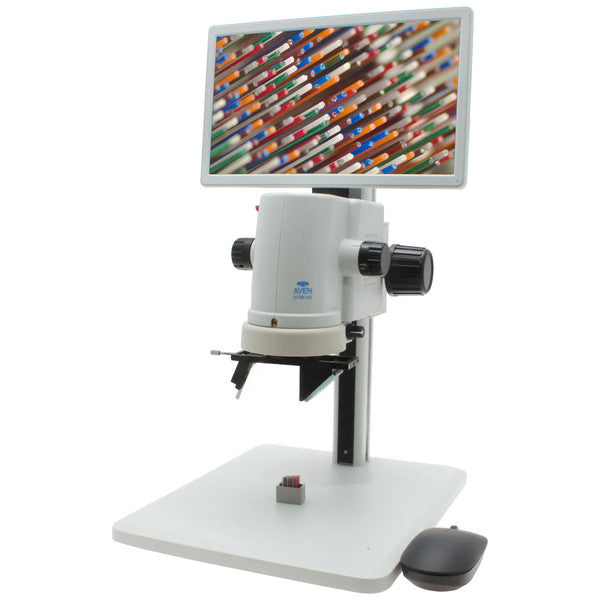

Aven MicroVue Digital Microscope with 360 Viewer [17x - 110x] - 26700-140-3D

MicroVue Digital Microscope with 360 Viewer [17x - 110x] - 26700-140-3D

Aven's MicroVue Digital Microscope is an all-in-one inspection system.The MicroVue offers a magnification range of 17x - 110x on it's built- in 11.6" monitor and 8.6x to 221x with optional lenses

Features:

• Built-in 11.6" monitor for ergonomic viewing
• 17x - 110x magnification (on the built-in monitor) without optional lenses
• 8.6x To 221x Magnification Range With Optional Lenses
• HDMI output for external monitor viewing
• Built-in measurement capabilities
• Save image/video files to USB storage device
• USB included
• 360 Viewer Attachment rotates to give a 35 degree angle view
• Compact design saves bench top space

Digital Microscope with Built in Monitor

8.6x to 221x magnification range with optional lenses

The MicroVue has all the features required for digital inspection. View live images, capture high resolution images and video files, make text annotations, make accurate measurements with the built in software, and more all done without the need for an external PC

Inspecting objects on the built in monitor offers an ergonomic inspection process, significantly reducing the eye strain and body fatigue often associated with frequent optical microscope use.

The included 360 Viewer Attachment provides a 35 degree angled view, and can be rotated 360 degrees to view areas that are otherwise difficult to see.

360 Viewer Attachment provides unique viewing angles

The 360 Viewer Attachment's unique design gives operators a new perspective on objects being viewed.  The 35 degree angled mirror is ideal for looking around multi-layered parts such as circuit boards, medical tools, industrial parts, and more.  The attachment can be rotated 360 degrees to display the part from various angles.

• When in the On Position the 3D Viewer displays the angled on-screen image with a reduced 0.5x magnification applied.¬†
• When in the Off Position the screen displays an overhead image with no added angle and no magnification reduction.

Large Magnification Range

MicroVue offers a magnification range of 17x - 110x on its built- in 11.6" monitor without use of the optional lenses.

Using the 0.5x lens the magnification range can be changed to 8.6x to 55x with the 0.5x lens and 34x to 220x with the 2x lens

NOTE:  Accurate magnification can only be measured with 3D Viewer Attachment in the OFF Position.

HDMI Output

The MicroVue features an HDMI output designed to connect to an external monitor. This allows operators to view live images on the built-in monitor, as well as on an external monitor.


USB Image Capture - No PC Required

Capture high resolution image/video files directly to a USB storage device with no need for a computer to process the image compression.

Built-in Measurement Tools

The included computational imaging software provides users with more functions such as:

• Calibration editor
• Radius measurement
• 2 point circle
• 3 point circle
• Crosshair
• Line measurement tool
• Center distance
• Concentric circle tool
• Annotation tool
• Screen shot tool

• 0.6x to 4x zoom magnification
• Detented Lens for High Accuracy Measurement
• 360 viewing with included attachment
• Heavy-duty post stand with adjustable LEDs
• All-in-one, compact system
• 1080p Full HD Imaging at 60 FPS
• HDMI Output for additional monitor viewing
• Built-in measurement software - No PC required
• Enhances productivity - eliminates eye strain and body fatigue
• 11.6" built-in HD monitor
• Save high resolution image/video files directly to USB Storage card
• 1080p Full HD Output
• Monitor can be tilted to the optimal viewing angle
• 360 viewer can be easily engaged or disengaged by sliding the mechanism in or out
