SKU: SPZHT135-209-536
California prop 65
Description

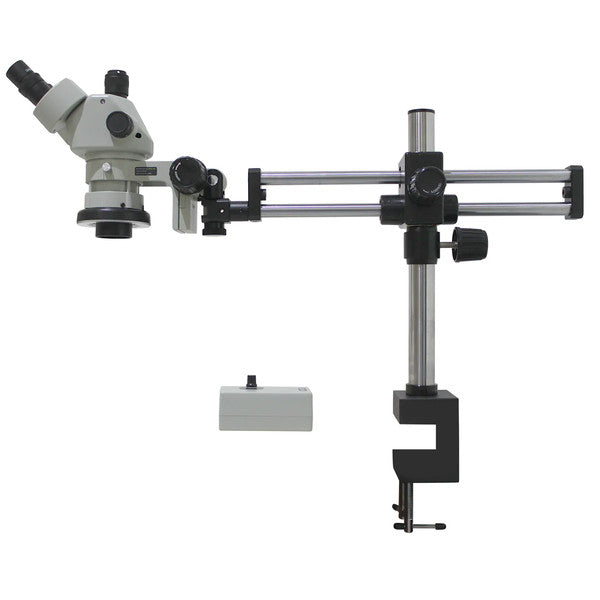

SPZHT-135 Stereo Zoom Microscope [21x - 135x] on Dual Arm Boom Stand with Integrated Ring Light - SPZHT135-209-536
Aven's SPZHT-135 stereo zoom microscope provides crisp clear 3D images, long working distance and a wide field of view. 21x - 135x magnification.  This microscope features a trinocular port to attach a digital camera for on-screen inspection.
Includes Aven's Double Arm Boom Stand with an integrated table clamp.  The 22.4" horizontal arm easily glides to the required  position.
Comes complete with Aven's E-Arm focus mount with an integrated LED ring light and LED adjustment controller.

SPZHT-135 Stereo Zoom Trinocular Microscope, 21x to 135x continuous zoom magnification with 15x eyepieces.  The trinocular port is designed for C-Mount camera attachment for on-screen inspection.

Zoom Adjustment

Graduations on the zoom knob tell operators the exact magnifications at which they are working. For applications requiring very specific adjustments, this is a particularly convenient feature.

High Eye Point

15x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and a highly Adjustable Interpupillary Distance of 52mm to 75mm provides operators with even more flexibility in their individual applications.

Double Arm Boom Stand with Heavy-Duty Table Clamp

Smooth movement of a ball bearing slide allows you to move your microscope easily over and across the object being viewed. Heavy-duty table clamp provides excellent stability. The heavy-duty all-metal constuction provides durability
  • Vertical Post Height: 384mm.
  • Vertical Post Diameter: ?37.2mm.
  • Horizontal Arm Length: 570mm.
  • Horizontal Diameter: ?20mm.
  • Mounting Hole on the Top of Horizontal Arm: 16mm.
  • Base Dimensions: 140x70x65mm.
  • Clamp Opening Size: 0-40mm



Focus Mount with Integrated Ring light

This focus mount features a built in eco friendly daylight 60 LED ring light for ultra-bright illumination. LED lights have a long life and low power consumption. The adjustable coarse focus knobs allow for easy vertical, incrememental adjustment of the microscope body. Includes an external LED dimmer control box.



SPZHT-135 Stereo Zoom Microscope

  • Total Magnification of 21X to 135X at 3.3‚ǨÔøΩ (84mm) working distance, Max 180X with 20X eyepieces
  • Click stop zoom adjustments for accurate, repeatable measurement
  • Standard High Eye Point wide field 15x eyepieces at 45 degrees for comfortable viewing even for operators with eyeglasses
  • Diopter adjustment on both eyepiece tubes
  • Adjustable Interpupillary Distance of 1.96‚ǨÔøΩ (50mm) to 2.91‚ǨÔøΩ (74MM) accommodates any operator
  • Multi coated optical components, free from chromatic and spherical aberration
  • One touch fine focus adjust trinocular camera port for quick, easy camera focusing and parfocaling the scope



E-Arm Focus Mount with LED Ring Light

  • E-Arm compatible with boom stands and articulating arm stands
  • 60 integrated LED ring light with dimmer control
  • Minimum 20,000 hours of high-output LED illumination
  • Fits Aven's binocular and trinocular microscopes
  • Low power consumption



Dual Arm boom Stand with Table Clamp

  • Table clamp provides excellent stability
  • Allows positioning of microscopes over large area
  • Heavy duty all metal construction for durability.
  • Posts are highly polished for smooth operation
  • Table clamp securely attaches to your work surface and saves table space.
