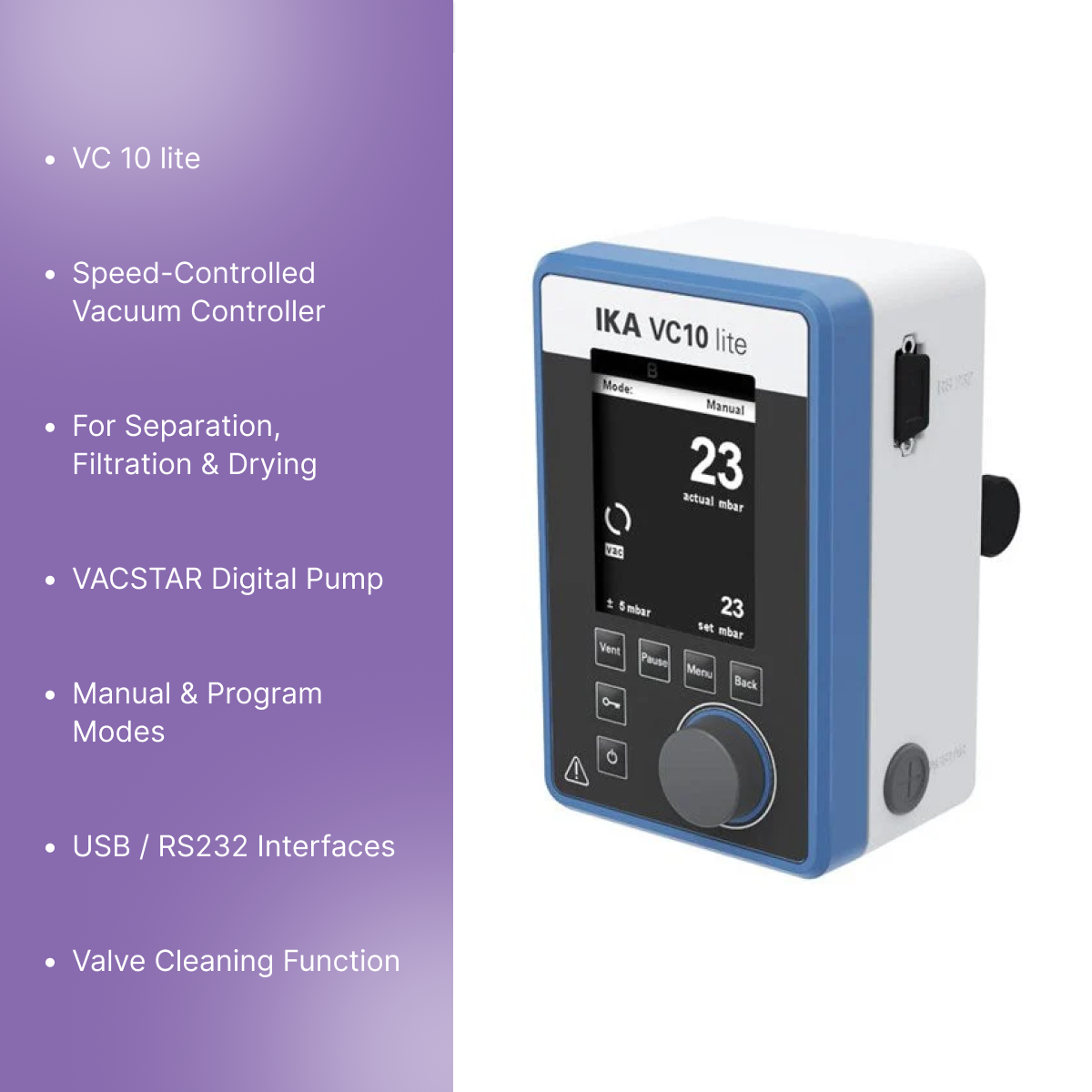

VC 10 lite

Speed-controlled, universal vacuum controller for controlled evacuation of air (gas) from laboratory equipment, as well as for classical separation, filtration or drying tasks in the laboratory. The controller is ready-to-use in numerous applications and can be easily installed.

VC 10 lite is only compatible with the vacuum pump VACSTAR digital. A cable connection between pump and controller is required.
Manual and programmable mode available.

Features:

• Valve cleaning function for long service life
• High energy efficiency thanks to device-to-device communication: control of the circulator by connecting the vacuum controller with PC 1.3 data cable (available as accessory)
• Integrated ventilation valve for simple pressure equalization and aeration with inert gas after process completion
• VENT short key button allows pressure equalization during a running process
• Program function: up to ten user-defined programs can be saved, with up to ten pressure/time sequences
• USB / RS232 interfaces for connection with the laboratory software labworldsoft®
• Electronic control system for improved process efficiency and higher solvent recovery rate
• High energy efficiency thanks to device-to-device communication (vacuum controller to recirculating chiller)

For additional safety for users and environment, the use of the VSE 1 vacuum safety emission condenser is recommended, which prevents solvents from being released into the room air. The VSE 1 is available as an accessory.
Scope of delivery

• VC 10 lite
• USB Cable - USB A to Micro-B, 2 m

Technical Data

Connection diameter suction side	8 mm
Connection diameter pressure side	8 mm
Connection diameter venting side	8 mm
Input pressure	1 - 1050 mbar
Analog speed vacuum control	yes
Display	TFT
Pressure unit / scale	mbar, hPa, mmHg, Torr
Vacuum sensor	yes
Vacuum sensor type	ceramic Al2O3
Pressure max. for pressure sensor	1.6 bar
Measurement range (absolute)	1 - 1100 mbar
Control range	1 - 1100 mbar
Resolution pressure	1 mbar
Measurement uncertainty	1 mbar
Medium temperature (gas)	5 - 40 °C
Venting valve	yes
Temperature measuring range max.	200 °C
Temperature measurement resolution	1 K
Accuracy of temperature measurement	±1 K
Timer	yes
Time setting min.	1 s
Time setting max.	6000 min
Vacuum speed control interface	VACSTAR
Material in contact with medium	Al2O3, PTFE, FPM, PPS
Housing material	PBT
Fastening	stand / clamp
Fastening diameter	16 mm
Mode manual	yes
Mode program	yes
Graph function	yes
Chiller control	yes
Vacuum leakage test	yes
Dimensions (W x H x D)	95 x 150 x 110 mm
Weight	1.284 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 20
RS 232 interface	yes
USB interface	yes
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	24 W
Power input standby	2 W
DC Voltage	24 V=
Current consumption	1000 mA
