Aven Stereo Zoom Trinocular Microscope SPZHT-135 [21x - 135x]

Aven Stereo Zoom Trinocular Microscope SPZHT-135 [21x - 135x] - SPZHT-135-258-512

$4,459.79

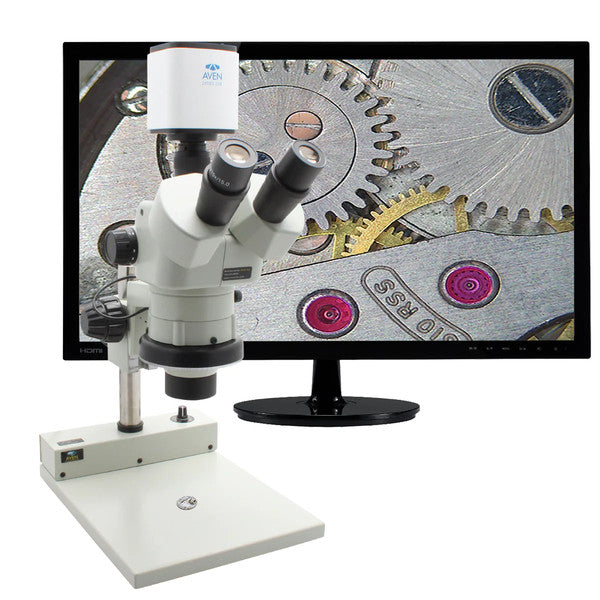

Stereo Zoom Trinocular Microscope SPZHT-135 [21x - 135x] with Mighty Cam Pro Auto Focus on PLED Stand - SPZHT-135-258-512
True trinocular microscope. Provides crisp clear 3D images, long working distance and a wide field of view. 21x to 135x continuous optical zoom with 15x eyepieces.¬† Includes Aven's Mighty Cam Pro USB+HDMI autofocus camera.¬† View live images on an HD monitor or on a computer via the included Mosaic software.¬† The camera also features an SD card slot for capturing images without a PC, as well as on-screen measurement tools for use in HDMI mode.

Microscope Magnification Range	21x - 135x
On-Screen Magnification Range	71x - 495x

An unprecedented high-speed focusing experience

The heart of this system is our Mighty Cam Pro auto focus camera. It offers both continuous and single-shot auto focus modes helping you increase your productivity. The camera also supports mouse wheel control for fine tuning. Data transfer up to 60 frames per second enables users to get clear images with ease.

The Mighty Cam Pro features dual outputs - USB and HDMI - for use with a PC or an HD monitor.

Perfect color reproduction

Camera's color processing is capable of a new level of precision producing extremely high color definition

Integrated measurement system

No PC Required

Built in on screen tools provide powerful measurement functions including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance and much more. Three different length units of millimeter, centimeter and micrometer are provided to meet various measurement requirements in different applications. Simple calibration tool is also included.¬†

Connect Camera to a PC to Utilize More Advance Features

The included computational imaging software provides users with more functions such as:

Auto focus fine tuning
Intelligent capture and processing
Efficient measurement and attribute editing
Reporting

Features

Total Magnification of 21X to 135X at 3.3‚Ç¨ÔøΩ (84mm) working distance, Max 180X with 20X eyepieces
Click stop zoom adjustments for accurate, repeatable measurement
Standard High Eye Point wide field 15x eyepieces at 45 degrees for comfortable viewing even for operators with eyeglasses
Diopter adjustment on both eyepiece tubes
Adjustable Interpupillary Distance of 1.96‚Ç¨ÔøΩ (50mm) to 2.91‚Ç¨ÔøΩ (74MM) accommodates any operator
Multi coated optical components, free from chromatic and spherical aberration
One touch fine focus adjust trinocular camera port for quick, easy camera focusing and parfocaling the scope
Features both USB and HDMI outputs for viewing on an HD monitor or your computer.
On-screen measurement tools for use in HDMI mode
Mosaic software included.¬† View live images, capture high resolution images and videos, measure, annotate, draw, create panoramic images, and more.
SD card port included for image capture without a computer.
Achieve instant auto focus with no need to adjust the optical lens.
