Aven Stereo Zoom Trinocular Microscope DSZV-44 [10x-44x] - 26800B-323

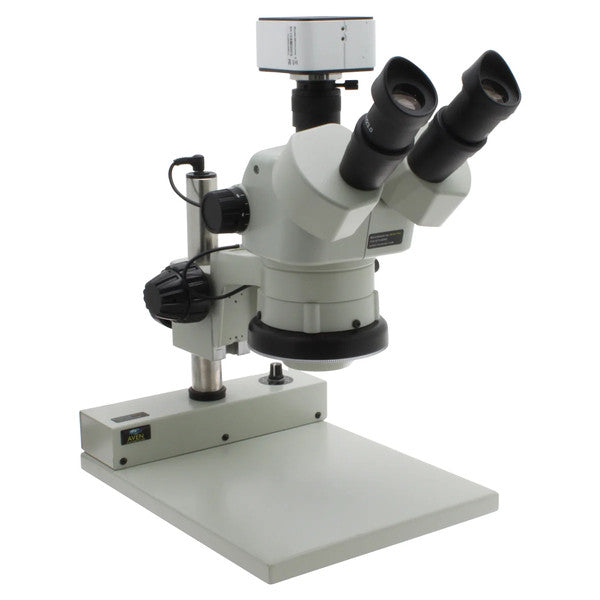

Stereo Zoom Trinocular Microscope DSZV-44 [10x-44x] on Post Stand with Integrated LED Light & USB 5M Camera - 26800B-323
Avens DSZV-44 Stereo Zoom Trinocular Microscope 10x to 44x mounted on stand PLED featuring 60 energy saving eco friendly LED lights with dimmer. A dual view trinocular port allows viewing of the object through the eyepieces and external monitor at the same time. Mighty Cam USB 3.0 6M CMOS Camera With Software allows view to easily capture images onto to your PC for documentation, sharing or measurement.

DSZV-44 Stereo Zoom Trinocular Microscope on Stand PLED with Mighty Cam USB 3.0 6M CMOS Camera

Save images directly to your PC

 This dual view microscope system features premium quality optics, design and manufacturing for industrial inspection and laboratories. The operator can see 3D images through the eyepieces and 2D images simultaneously on an external monitor connected to a USB color camera on the trinocular port.A 60-LED ring light with dimmer control is built into the focus mount, which has coarse and fine focusing for precise control. The system includes imaging software for image capture and measurement. The base has a large working area of 220mm by 284mm (8.6€œ by 11€œ).

Wide Magnification Range

This powerful microscope has an impressive magnification range of 10x to 44x, and optional lenses can enhance magnification to up to 140.8x.

10x Eyepieces Provide Crystal Clear 3D Viewing

10x Eyepieces ensure comfortable viewing for all operators, including those who require eyeglasses. Diopter Adjustment on both Eyepiece Tubes and a highly Adjustable Interpupillary Distance of 52mm to 75mm provides operators with even more flexibility in their individual applications.

Save Images, Make Measurements, Create Reports

The included software provides an easy-to-use, yet sophisticated interface for saving high resolution images, writing annotations, generating reports and accurate measurements. This user-friendly interface is ideal for saving critical data and sharing information.

Real-Time Depth of Field Adjustment

When inspecting at high magnification, certain areas of specimen may not be in focus depending on the depth of the object. With theReal-Time Depth of Field feature, operators can adjust the focus parameters, with no need to adjust the physical optics.

Create Panoramic Images

Mighty Cam is equipped with imaging and measurementsoftware, which provides a "real-time image stitching" function. It can generate large-sized panoramic images in a few seconds.Requires a gliding stage for optimal performance.

Duarable Stand

The package includes Avens Stand PLED featuring 60 built-in eco-friendly LED lights and a dimmer. The lightweight, compact stand features a rack-and-pinion focus mount (74 mm in diameter) with fine focus adjustment for precise control, a large base (220mm x 284 mm x 15mm). 255mm vertical post length.

Brightness Adjustment

Equipped with 60 eco-friendly LED lights, the standincludes Built-In Illuminationwith a Dimmer Control knob. This energy-saving, productivity enhancing feature ensurescolor consistency when dimming, and a flicker free experience for operators.

Focus Adjustment

The focus mountprovides Coarse and Fine Focusing, and is ideal for precision work. The graduations on the zoom knob tell operators the exact magnifications at which they are working. For applications requiring very specific adjustments, this is a particularly convenient feature.

Features

• Superior optics with Crystal clear high resolution images
• Magnification Range: 10x to 44x
• Dual View Trinocular allows viewing of object through eyepiece and on external monitor at the same time
• Stand with 60 built in LED with dimmer for shadow free illumination
• Mighty Cam USB 3.0 6M CMOS Camera With Software allows you to document, share and measure
