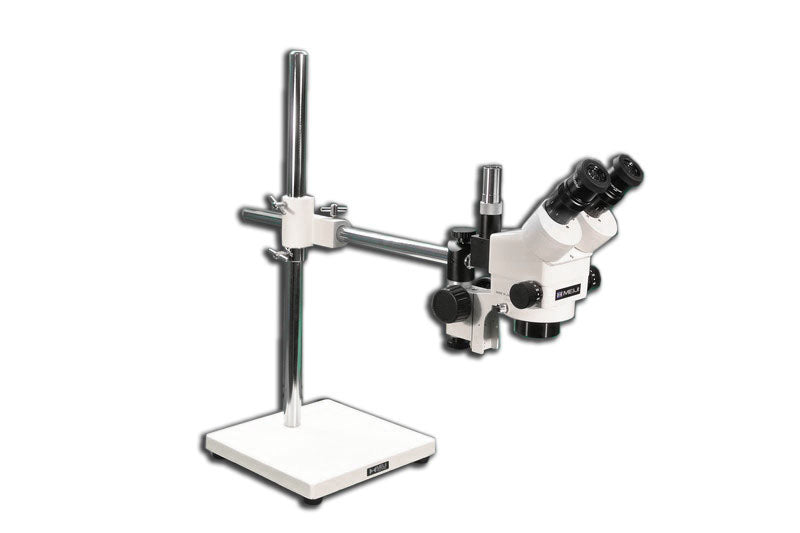

Meiji Techno EMZ-8TRH + MA522 + F + S-4200 (7X – 45X) Stand Configuration System, Working Distance: 104mm (4.09″)

The EMZ-8TRH is a New and Improved High Eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also uses a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X) Optional rubber eye guards (MA906) are also available.

F: Focus Block

The F holder is a focusing holder with a rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.

S-4200 Boom Stand

The S-4200 Boom Stand is Meiji Techno America’s most popular Ergonomic boom stand with pillar, crossarm and a 20mm drop down mounting post accepts F, FX or FC holders, (must be ordered separately) or focus blocks with a 20mm mounting hole which are commonly available from microscope manufacturers.

Equipped with a 610mm (24”) vertical pole and a 530mm (20.86”) horizontal pole. The S-4200 offers minimal space requirement and greatest possible vertical post length in its series. The S-4200 can swing out of the way easily, clearing the workstation for other tasks.

The horizontal arm can be moved freely left to right or can be securely locked into position with our T handle knobs. Extra length vertical posts are available in other models. The vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies. Anti-rotation is stablilized by a locking pin on the vertical post.

MA522: Eyepieces

Included is the MA522 Super Widefield Eyepiece, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only)
