Scienscope CC-SMART-4K

$1,540.00
Add to wishlist
Add to compare
SKU: CC-SMART-4K
California prop 65
Description

Description

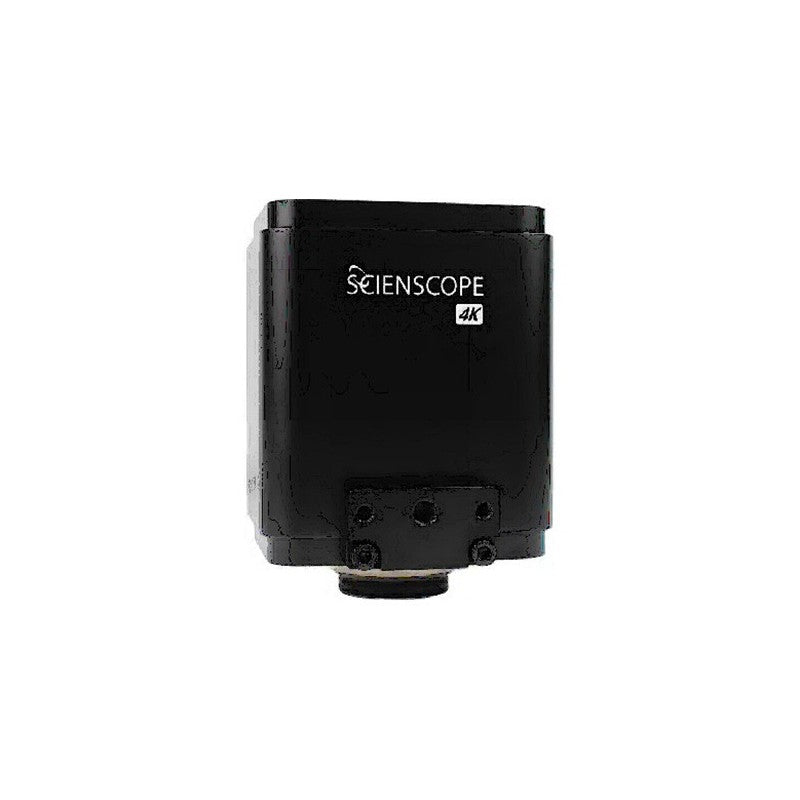

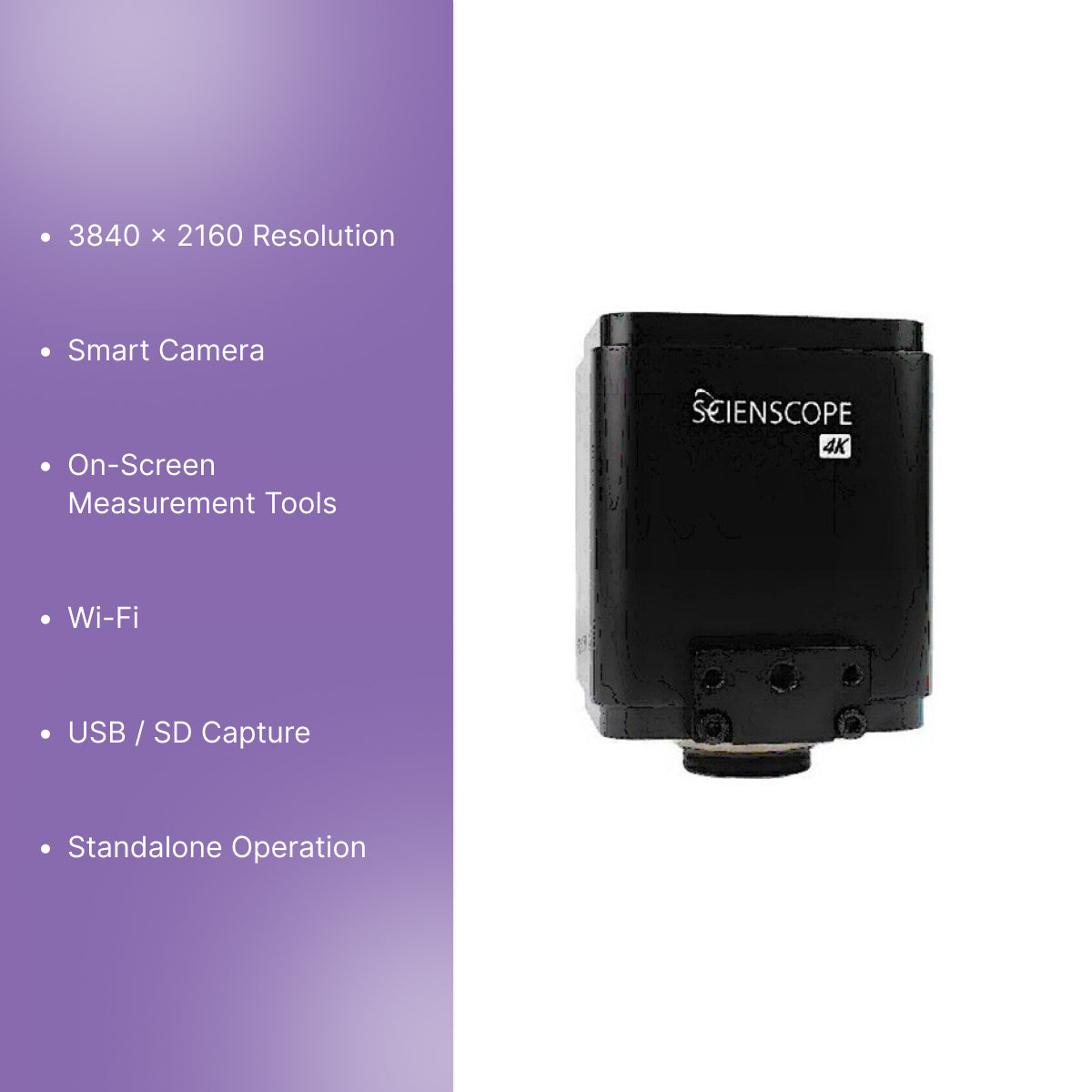

The Scienscope CC-SMART-4K is a 4K ultra-high-definition SmartCam designed for detailed visual inspection and imaging. It delivers 3840 × 2160 resolution for high-clarity images and includes integrated on-screen measurement tools that operate without the need for a computer.
Images and videos can be captured directly to an SD card, USB flash drive, or transferred via Ethernet or Wi-Fi connectivity. The camera functions as a standalone system, offering flexibility for inspection, documentation, and analysis.

Key Features

• 4K Ultra HD resolution (3840 × 2160)

• Integrated on-screen measurement tools

• Capture to SD card and USB flash drive

• Ethernet and Wi-Fi connectivity

• Standalone smart camera system

• Designed for high-detail inspection


Applications

• Visual inspection

• Imaging and documentation

• Measurement tasks requiring on-screen tools

• Digital inspection workflows


Benefits

• Provides clear, high-resolution 4K imaging

• Enables measurements directly on screen without a PC

• Offers multiple capture and connectivity options

• Supports standalone operation for flexible setups


Product Specs

Active Sensor Area 7.68 mm × 4.32 mm
Connectivity HDMI • Ethernet • WiFi
Image Format JPG
Pixel 8 MP (2 µm × 2 µm)
Power 12V DC, 1A
Recording Media SD card • USB flash
Resolution 3840 × 2160
Sensor CMOS
Sensor Optical Format 1/1.8"
Shutter Electronic rolling shutter
Video Format MP4
WiFi Enabled Yes
WiFi Standard 802.11ac (5 GHz)

Categories

• Scienscope Cameras

• Digital Inspection Equipment

• 4K Imaging Systems

• Smart Inspection Tools

Reviews

FAQs

What is the resolution of the CC-SMART-4K SmartCam?

The SmartCam delivers ultra-high definition 4K resolution with a pixel count of 3840 × 2160. This provides significantly sharper imaging than standard HD, making it ideal for detailed visual inspection and documentation workflows.

What measurement and capture features does it include?

It incorporates onboard measurement tools (on-screen geometric measurement, overlays, multi-line generator) without the need for an external computer. Image and video capture is possible via SD card, USB flash drive, Ethernet, and WiFi connectivity.

What connectivity and control options are available?

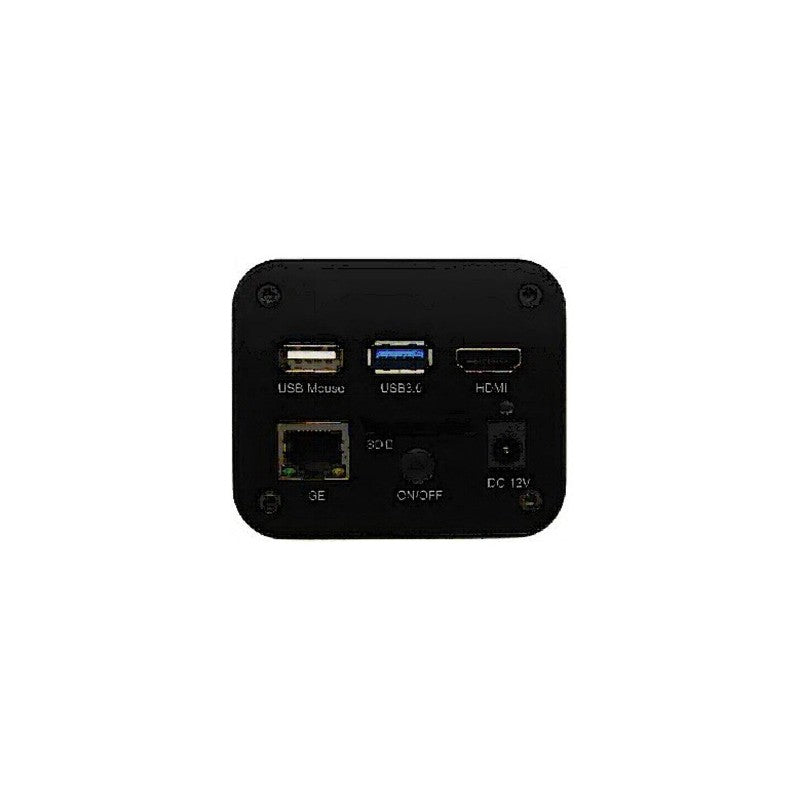

The SmartCam supports HDMI output, Ethernet (for wired network capture or PC connection), and WiFi (wireless capture). Users can control the camera via a mouse or interface and store images/videos on USB/SD media.

What applications is this SmartCam suited for?

Ideal for inspection, documentation, and measurement tasks in electronics manufacturing (e.g., PCB inspection), microscopy setups, failure analysis, and where detailed high-resolution imagery and measurement overlay are required. The standalone capability provides flexibility in setup.

What should I know about installation and environment?

Power is typically 12 V DC at 1 A. The sensor is 8 megapixels with a size of approximately 7.68 mm × 4.32 mm. Ensure your monitor and environment support 4K display and connectivity: use proper HDMI cable, setup mounting or microscope interface, and ensure WiFi or Ethernet line quality if used.
