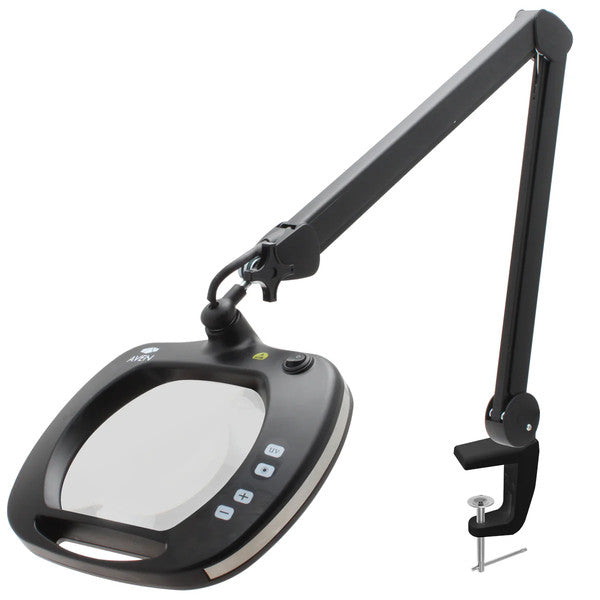

Aven Mighty Vue Pro 5 Diopter [2.25x] Magnifying Lamp - 26505-ESL-XL5-UV

The Mighty Vue Pro UV lamp features unique illumination options, giving operators the ability to use Ultraviolet (UV) LEDs or standard white LEDs. Operating at 365nm the UV LED lights in this magnifying lamp can be used for examination of conformal coatings, holograms, etc, any type of materials that fluoresces under inspection.

This model features 48 adjustable white LEDs as well as 30 UV LEDs operating at 365nm. Features an ESD safe coating to dissipate static energy designed to protect sensitive components.

Innovative Design

• Features 48 adjustable white LEDs as well as 30 UV LEDs operating at 365nm.
• Large 7.5 x 6.2 inch, 5-Diopter crystal-clear glass lens for distortion-free viewing
• Fully covered spring-balancedarm with a large working range
• Swivel motion allows the lamp head to rotate
• Covered spring arm prevents pinching hazards
• ESD Safe coating

AdjustableLighting

Mighty Vue Pro lamps offer brightness and color adjustment, giving operators the perfect lighting options for their applications.

• Max illumination: 1100lm
• UV LEDs: 365nm


Lamp Positioning

• Adjust the lamp knob to set your preferred lamp angle
• Stays in place in any position

Heavy Duty Table Clamp

• Includes a heavy-duty mounting clamp
• Securely mounts to the side of your work bench.

• Features both standard white LEDs and UV LEDs
• 48 white LEDs, 30 UV LEDs (365nm)
• 7.5 x 6.2‚ǨÔøΩ extra-wide glass lens for crystal-clear viewing
• 360 swivel lamp head. Inspect from any angle.
• Touch-sensitive brightness control
• Built-in handle for easy positioning
• Adjustment knob locks lamp head and arm in position
• Adjustable spring balanced arm, free of pinching hazards
• ESD Safe
• Includes heavy-duty table clamp and power adapter
• Blacklight (320-400 nm) does not represent a hazard under normal use conditions.¬†¬†
