Heidolph Hei-VAP Ultimate ML/G5 Non Coated - 036041053

$14,410.40
Get Financing
Add to wishlist
Add to compare
SKU: 036041053
California prop 65
Description

Description

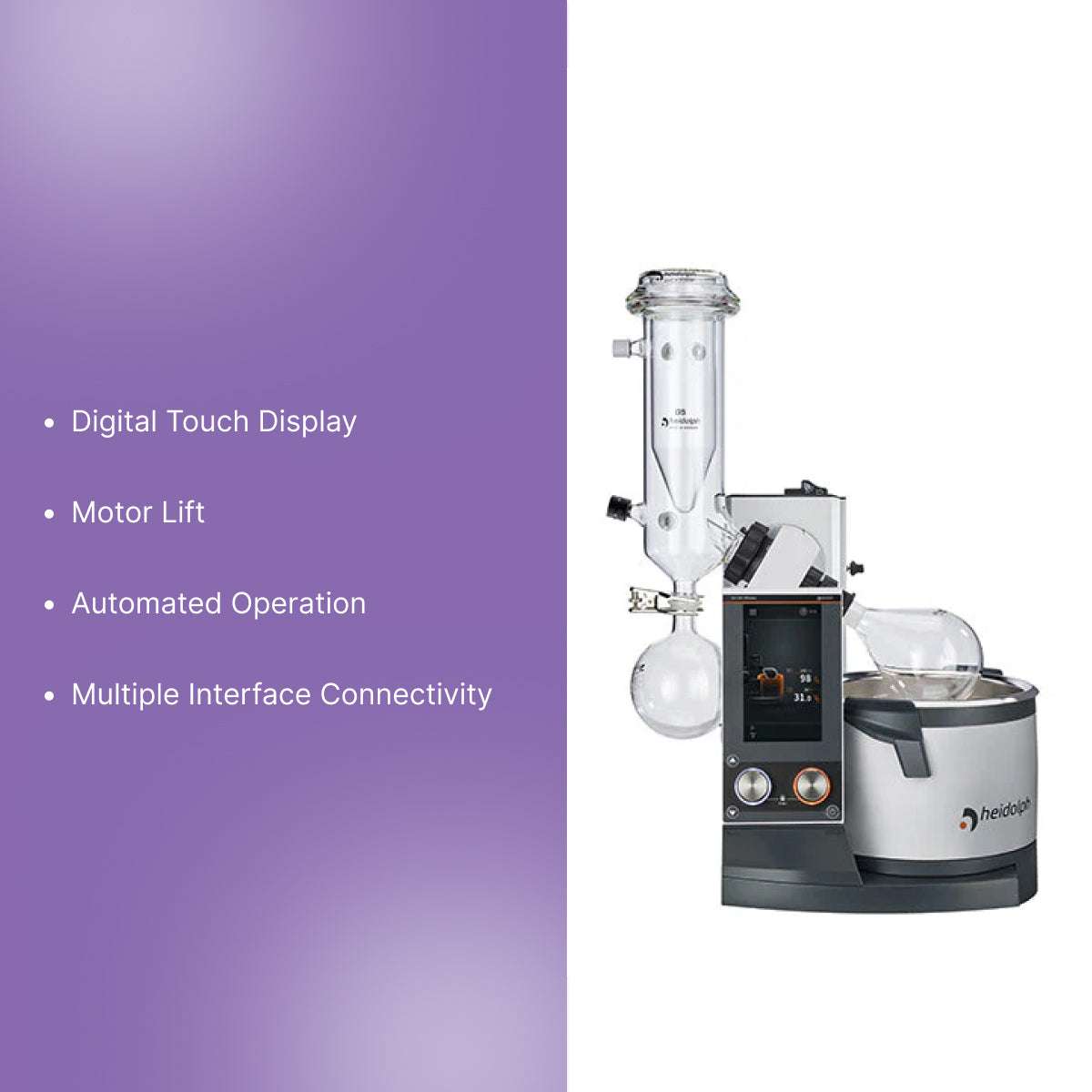

The Heidolph Hei-VAP Ultimate ML/G5 Non-Coated Rotary Evaporator (SKU: 036041053) offers cutting-edge performance and precision for laboratory evaporation processes. This advanced system features a digital touch display for easy control of rotation speed and heating bath temperature. With a motor lift for automated operation, the Hei-VAP Ultimate minimizes manual intervention, increasing throughput and ensuring reproducibility. It supports multiple interfaces (USB, MicroSD, LAN, RS232), enabling seamless integration into modern lab environments.


Key Features

• Digital Touch Display: Precise control of rotation speed and heating bath temperature.

• Motor Lift: Automates lifting and lowering, reducing manual handling and improving efficiency.

• Multiple Interface Connectivity: Includes USB, MicroSD, LAN, and RS232 for easy integration into lab systems.

• Non-Coated Design: Ideal for a variety of chemical processes requiring robust and reliable performance.

• Automated Operation: Designed for high-throughput evaporation and routine lab automation.


Applications

• Research Laboratories: Perfect for labs that require high-precision evaporation and solvent removal.

• Pharmaceutical and Chemical Processing: Ideal for contract research, process development, and scale-up.

• Educational Institutions: Used in teaching laboratories to demonstrate evaporation principles and automated processes.


Benefits

• High Throughput: Efficient motor lift and automated operation increase evaporation speed and reduce operator involvement.

• Precise Control: The digital display ensures accurate temperature and speed settings for consistent results.

• Seamless Integration: Multiple connectivity options enable easy integration with existing lab systems and automation setups.

• Durability: Non-coated construction offers long-lasting performance, even in demanding laboratory environments.


Product Specs

ft Motor lift
Rotation Speed Range 10 - 280 rpm
Rotation Speed Indicator 7" LCD color graphic display
Heating Capacity 1,300 W
Overheat Protection Bath Cut-off at 5°C over set temperature via separate PT 1000
Bath Temperature Setting 7" LCD color graphic display
Heating Bath Temperature Control Electronic / Digital
Max. Size Evaporating Flask 5 liters
Timer Yes
Programmable Ramps Yes
Condensing Surface 1,400 cm²
Condensing Surface XL Condenser 2,200 cm²

Categories

• Rotary Evaporators

• Laboratory Equipment

• Research Instruments

• Process Development Tools

Reviews

FAQs

What major functions does the Hei‑VAP Ultimate ML/G5 provide?

This system offers a digital touch display for rotation speed and bath temperature control, a motor‑lift mechanism that automates raising and lowering the flask, and multiple interfaces (USB, MicroSD, LAN, RS‑232) for integration into lab networks and automation.

What is the rotation speed and flask size capability?

The evaporator supports a rotation speed range of 10 to 280 rpm, and can accommodate an evaporating flask up to 5 liters in size. These features allow for high‑throughput evaporation and process scale‑up.

What are the bath heating and temperature features?

It features a heating bath with heating capacity around 1,300 W, a temperature range from 20 °C up to 210 °C (depending on configuration), plus electronic/digital temperature control and overheat protection.

What condenser and surface area options are available?

The system supports a condenser surface area of approximately 1,400 cm² in standard configurations and up to 2,200 cm² when using the “XL” condenser variant — offering improved condensation efficiency.

What material construction and durability features does it offer?

The bath is made of stainless steel (AISI 316L or V4A) and the unit is designed for demanding laboratory environments. The motor lift, premium glassware options, and strong controls support reliable, long‑term usage.
