Aven MicroVue Auxiliary Lens 0.5x - 26700-140-L05X

MicroVue Auxiliary Lens 0.5x - 26700-140-L05X
For use with Avens MicroVue Digital Microscope, this objective lens provides increase field of view, ideal for examining objects with a larger surface area.

Monitor Size	MicroVue Standard Lens		MicroVue 0.5x Lens
	Working Distance:100mm		Working Distance: 165mm
	Mag.	F.O.V.(mm)	Mag.	F.O.V.(mm)
11.6''	17.2x-110.5x	18.5*10.5-2.8*1.5	8.6x-55.2x	37.5*21-5.5*3.0
21.5''	31.9x-204.8x	18.5*10.5-2.8*1.5	15.9x-102.4x	37.5*21-5.5*3.0

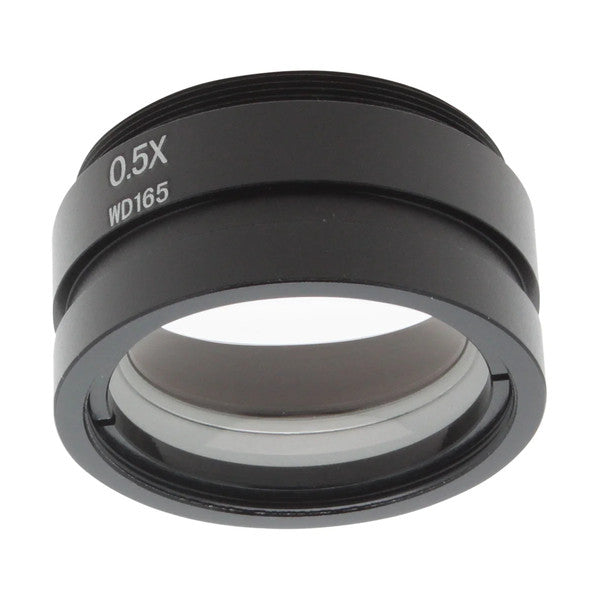

The MicroVue 0.5x Objective Lens is designed to enhance the versatility of the MicroVue Digital Microscope.  When in use, the magnification range becomes 8.6x 55.2x on the MicroVue 11.6€� monitor.  By reducing the magnification range by 50%, the field of view increases, providing more viewing area to inspect a larger surface area.

This lens easily screws to the bottom of the MicroVue Digital Microscope for crystal-clear high-resolution inspection.

Monitor Size	MicroVue Standard Lens		MicroVue 0.5x Lens
	Working Distance:100mm		Working Distance: 165mm
	Mag.	F.O.V.(mm)	Mag.	F.O.V.(mm)
11.6''	17.2x-110.5x	18.5*10.5-2.8*1.5	8.6x-55.2x	37.5*21-5.5*3.0
21.5''	31.9x-204.8x	18.5*10.5-2.8*1.5	15.9x-102.4x	37.5*21-5.5*3.0
