Dymax 38478 Four Pole Liquid Lightguide 3 mm x 1 m - 38478

$4,769.57
Get Financing
Add to wishlist
Add to compare
SKU: 38478
California prop 65
Description

Description

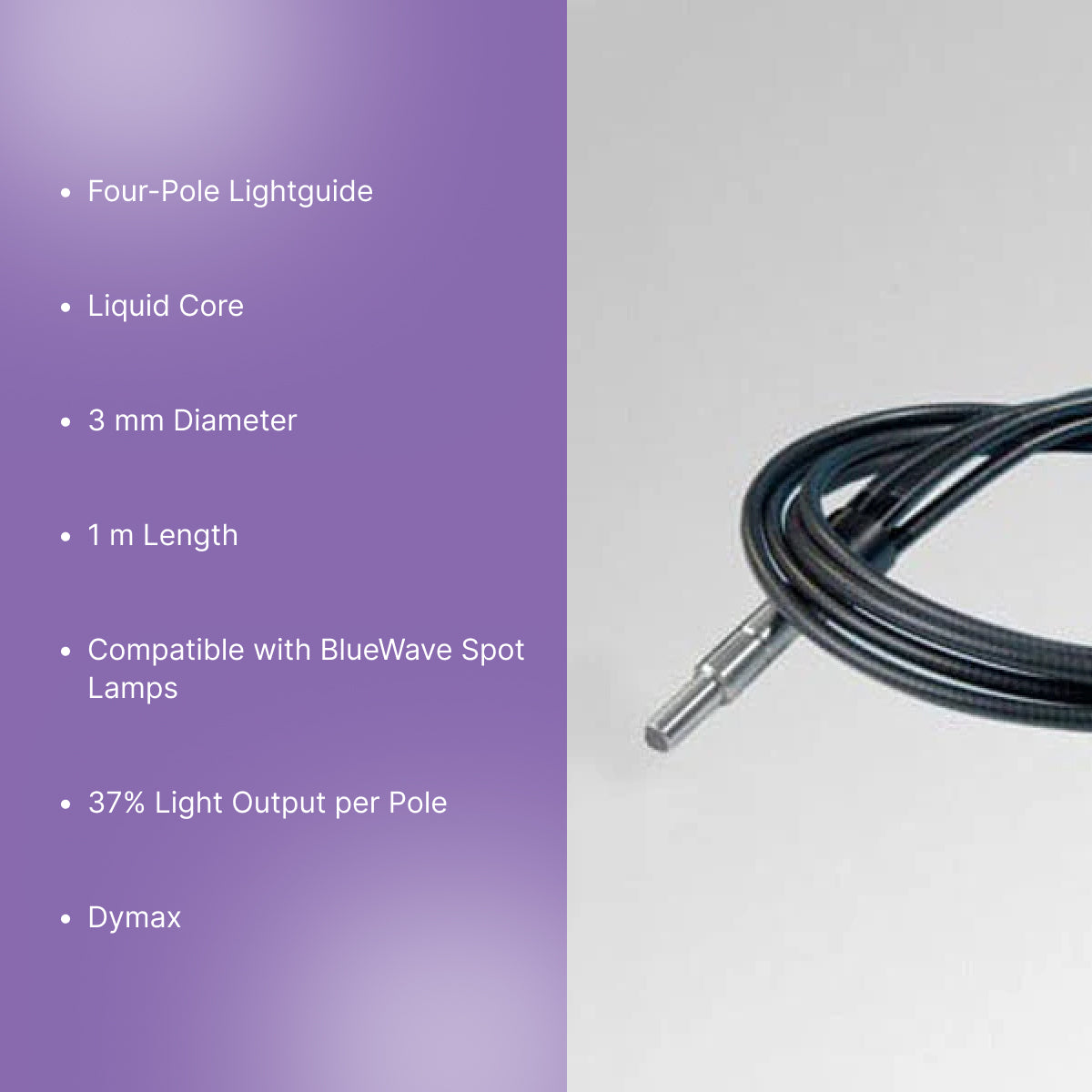

The Dymax 38478 Four-Pole Liquid Lightguide is designed for use with Dymax BlueWave Spot Lamps. It consists of plastic tubing with a light-conducting liquid core and is used to control the curing of Dymax adhesives, sealants, and coatings.
This lightguide provides a 37% light output from each pole and measures 3 mm in diameter and 1 meter in length. It is compatible with all Dymax BlueWave Spot Lamp systems. The item is in stock and typically ships within 1–2 business days.

Key Features

• Four-pole liquid lightguide

• 3 mm diameter

• 1 m length

• Light-conducting liquid core

• Provides 37% light output per pole

• Compatible with all Dymax BlueWave Spot Lamps

• Plastic tubing construction


Applications

• UV curing of Dymax adhesives

• UV curing of Dymax sealants

• UV curing of Dymax coatings

• Precision spot curing with BlueWave systems


Benefits

• Provides controlled and consistent UV light delivery

• Supports multi-pole output for curing efficiency

• Designed for direct compatibility with BlueWave spot lamp systems


Product Specs

Type Four-pole liquid lightguide
Diameter 3 mm
Length 1 m
Light Output 37% per pole
Construction Plastic tubing with liquid core
Compatibility All Dymax BlueWave Spot Lamps

Categories

• Lightguides

• UV Curing Equipment

• Dymax Accessories

• Spot Lamp System Components

Reviews

FAQs

What is the Dymax 38478 four-pole liquid lightguide used for?

The 38478 is a multi-pole (four-pole) liquid-core lightguide designed to deliver UV/visible light from Dymax spot-curing lamps to adhesive, coating or sealant surfaces. Its liquid light-conducting core enhances light transmission efficiency and enables simultaneous curing at multiple points with a single source.

What are the key specs and construction details of the 38478?

This model features a 3 mm diameter tubing, 1 m length, four output poles, each delivering about 37% of the optical output. It comprises plastic tubing surrounding a light-conducting liquid core and is compatible with Dymax BlueWave spot lamps.

Which lamp systems are this lightguide compatible with?

The 38478 is compatible with Dymax BlueWave® spot lamps and other models listed in the light-guide specification suite. Proper connector type (“D” or “Wolf”) and system optic configuration must be verified.

What advantages does the liquid core lightguide bring compared to quartz fiber guides?

Liquid-core guides like this one transmit higher intensity (>35 % more in many cases) than traditional quartz-fiber guides for UVA/visible wavelengths, and offer cleaner delivery with less scattering. However, they require proper balancing and are less suited for UVB/C wavelengths.

What maintenance or usage considerations should I know?

Over time, intensity drops (for example, from ~7.4 W/cm² initial to ~3.7 W/cm² at 2000 hours for this model). Proper cleaning, avoiding sharp bends, and using the correct connector and fixture mount are essential. Use a radiometer to verify output when processes demand consistency.
