SCI-S Circular-top Analog Magnetic Stirrer - 811111129999

$456.00
Add to wishlist
Add to compare
SKU: S8829
California prop 65
Description

Description

  • Key performance benefit: The SCI-S Circular-top Analog Magnetic Stirrer offers precise electronic speed control, maintaining a constant speed even when the load changes. With a speed range of 0-1500 rpm, it is ideal for a variety of laboratory applications, ensuring consistent and reliable stirring.
  • Material & construction: Constructed with a stainless steel work plate covered with ceramic, this stirrer provides excellent thermal conductivity and corrosion resistance. The robust materials ensure durability and long-term performance in demanding laboratory environments.
  • Risk reduction/compliance benefit: The stirrer's high magnetic adhesion minimizes the risk of stirring bar decoupling, enhancing safety and efficiency during operation. This feature is particularly important when dealing with volatile or sensitive substances.
  • Protection level: With an IP42 protection class, the SCI-S stirrer is safeguarded against solid objects over 1mm and dripping water, ensuring reliable operation in typical lab conditions. This protection level adds an extra layer of security for your laboratory processes.

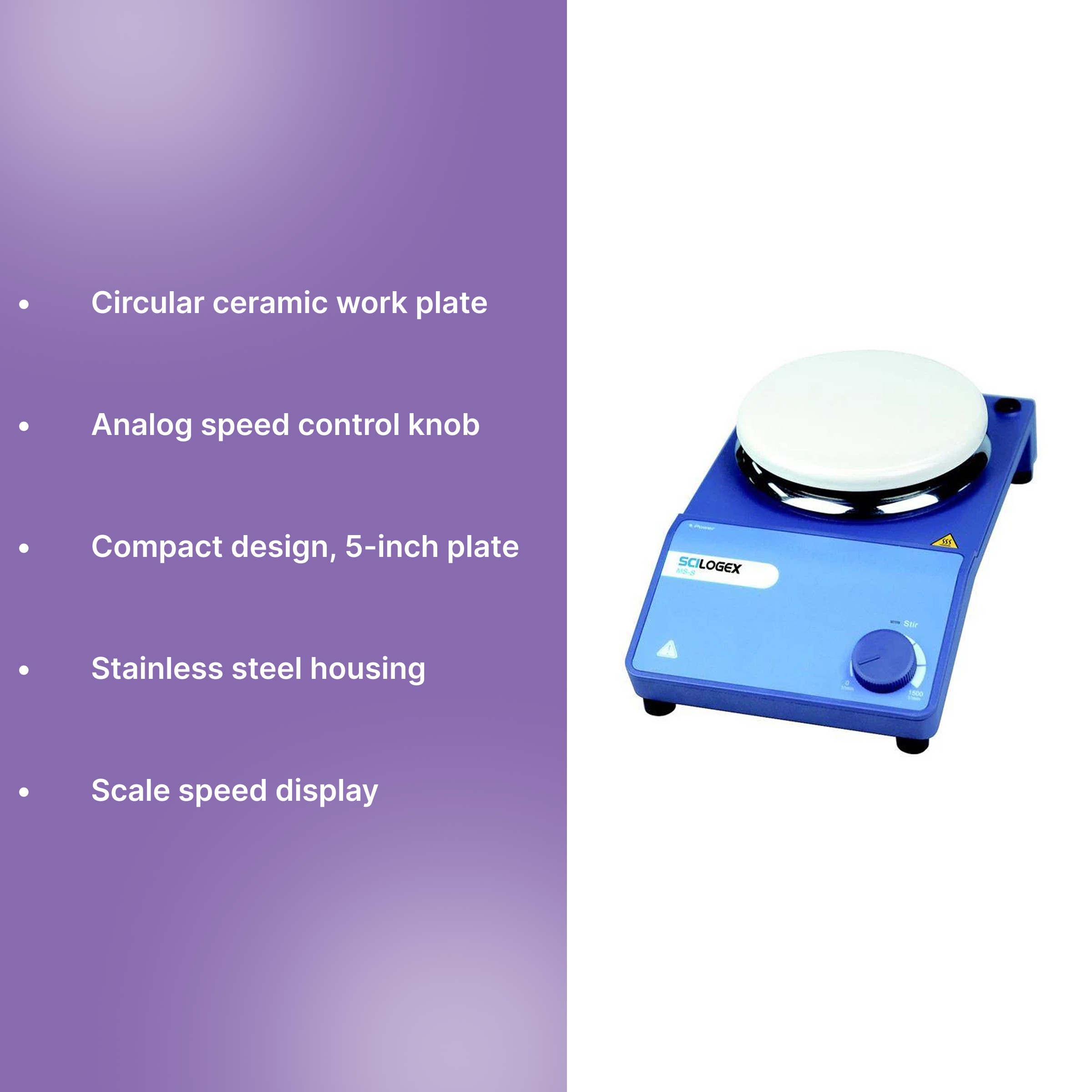

  • Comfort & usability: The user-friendly design includes an analog speed control knob and a scale-based speed display, allowing for easy, precise adjustments. The compact dimensions make it suitable for laboratories with limited space, enhancing usability and convenience.
  • Safety & compliance assurance: The product is cTUVus approved, meeting UL and CSA standards, which guarantees compliance with North American safety regulations. This certification provides peace of mind regarding the safety and reliability of the equipment.

Recommended For

  • Mixing chemical solutions
  • Stirring biological samples
  • Preparing pharmaceutical compounds
  • Conducting research experiments
  • Educational laboratory demonstrations
  • Industrial quality control processes

Primary Industries

  • Chemical manufacturing
  • Pharmaceutical development
  • Biotechnology research
  • Educational institutions
  • Food and beverage testing

Standards and Certifications

  • cTUVus approved for UL and CSA
SHOW MORE

Properties

Work plate dimension Ø135mm (5 inch)
Work plate material Stainless steel cover with ceramic
Motor type Brushless DC motor
Motor input power 18W
Motor output power 10W
Power 30W
Voltage 100-120V, 60Hz
Stirring positions 1
Max. stirring quantity (H2O) 20L
Max. magnetic bar length 80mm
Speed range 0-1500rpm
Speed display Scale
Protection class IP42
Dimension (WxDxH) 160×280×85mm
Weight 2.8kg
Permissible ambient temperature and humidity 5-40°C, 80%RH
Warranty 2 years
Reviews

FAQs

What is the maximum stirring capacity of the SCI-S Magnetic Stirrer?

The SCI-S Circular-top Analog Magnetic Stirrer can handle a maximum stirring quantity of 20 liters of water. This capacity makes it suitable for a wide range of laboratory applications, from small-scale experiments to larger batch preparations. The high magnetic adhesion ensures effective stirring even at maximum capacity, providing consistent results.

How should I maintain the ceramic-coated work plate?

To maintain the ceramic-coated work plate, regularly clean it with a soft cloth and mild detergent to prevent buildup and staining. Avoid using abrasive materials that could scratch the surface. The ceramic coating is designed to resist corrosion and chemical damage, but routine maintenance will prolong its life and maintain its excellent thermal conductivity.

Is the SCI-S Magnetic Stirrer compatible with all types of stirring bars?

The SCI-S Magnetic Stirrer is compatible with a variety of magnetic stirring bars, with a maximum length of 80mm. It is important to choose a stirring bar that matches the liquid's viscosity and volume to ensure optimal performance. Always ensure the bar is properly centered to avoid decoupling during operation.

What are the installation requirements for the SCI-S Magnetic Stirrer?

The SCI-S Magnetic Stirrer requires a stable, flat surface for installation and operation. It operates on a 100-120V, 60Hz power supply, so ensure your laboratory's electrical system is compatible. The unit's compact size allows for easy placement in most laboratory settings, but ensure there is adequate ventilation to prevent overheating.

What is covered under the 2-year warranty?

The 2-year warranty for the SCI-S Magnetic Stirrer covers defects in materials and workmanship under normal laboratory use. It does not cover damage caused by misuse, improper maintenance, or unauthorized repairs. For warranty claims, contact the supplier with proof of purchase and a description of the issue to receive assistance.
